SEIWEI C80 Non Overlay Cabinet Hinge with Face Frame Plate for Door Connect Frame for Kitchen Cabinet, Corner Door Hinges, Hardware Corner Cabinet Replacement, Pack of 2 - style: C80 Non Overlay

SEIWEI C80 Non Overlay Cabinet Hinge with Face Frame Plate for Door Connect Frame for Kitchen Cabinet, Corner Door Hinges, Hardware Corner Cabinet Replacement, Pack of 2 - style: C80 Non Overlay

$24.88 USD
$24.88 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

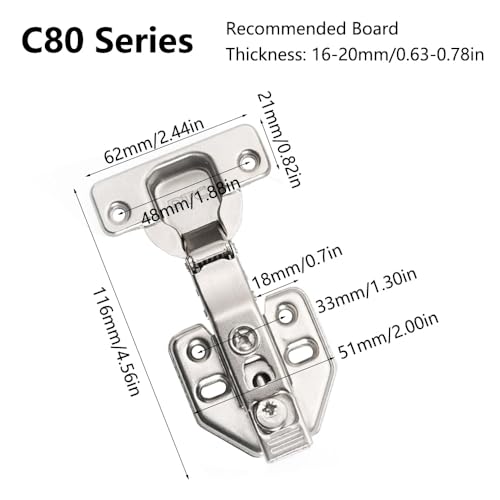

  • 【Installation Information】The cup diameter of cabinet hinge is 35mm/1.37in, the depth of cup is 11.5mm/0.45, the distance of screw holes is 48mm/1.88in and 33mm/1.30in and the distance of side panel base installation is 37 mm/1.45in, which is better recommended to be used for the cabinet door with the thickness of panel 16-20mm/0.63-0.78in as well as the optimal door edge distance is 5mm/0.19in, followed by 4-6mm/0.15-0.23in.
  • 【Sturdy And Durable】Door closing & opening hinge made of high quality cold rolled steel with surface plating, built-in shrapnel with heat treatment, so the hinge has a good load-bearing capacity, hardness, toughness, corrosion resistance, rust resistance, wear-resistant that can be used for a long time.

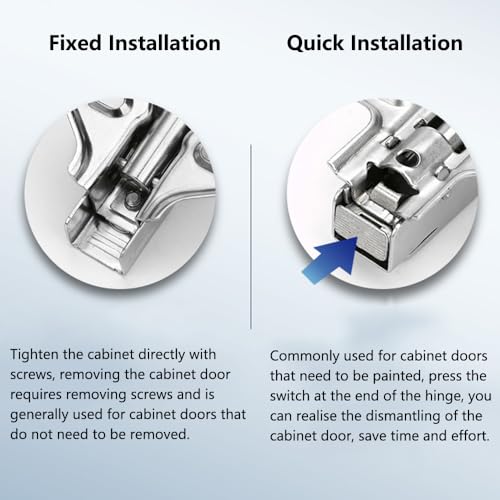

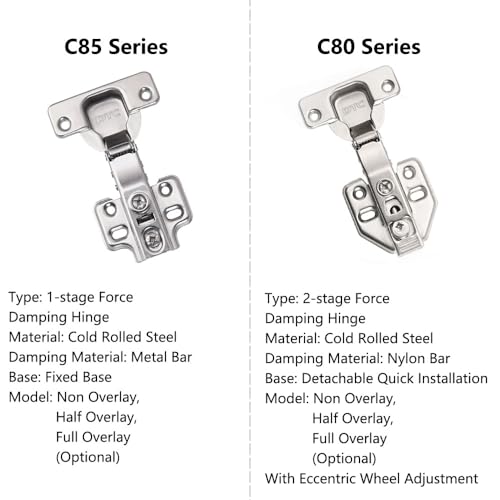

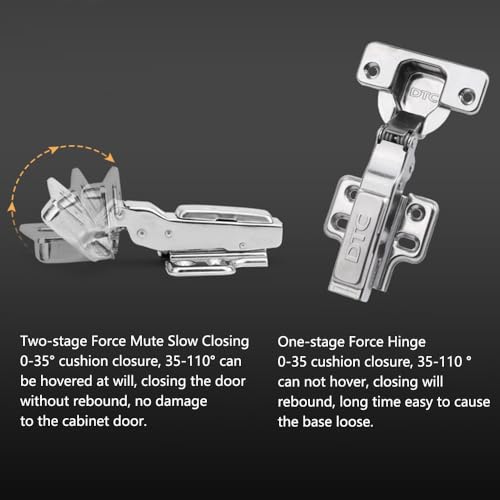

  • 【C80 Series】C80 series cabinet hinges internal metal damping bar with 2 stages of force that can be cushioned to close the cabinet door within 0-35 °, within 35-110 ° of the arbitrary suspension, closing the door will not rebound; and the installation method for the dismantling of the quick release, just press the switch at the end of the hinge, you can achieve the door dismantling, commonly used in the need to paint the door panels.
  • 【C85 Series】C85 series use metal damping strips inside with 1-stage force that can cushion the closure of the cabinet door within 0-35°, but cannot hover within 35-110°, closing the door will rebound; and the mounting method is a fixed base, which is generally applicable to the installation of the cabinet door without dismantling the door.

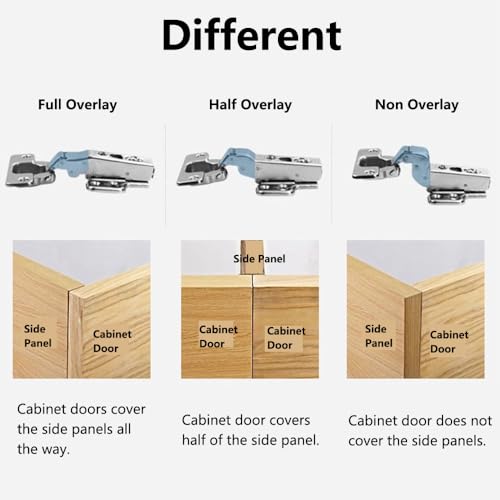

  • 【3 Models Options】There are 3 models to choose from, which are full overlay model suitable for the cabinet door covering all the side panels; half overlay model suitable for the cabinet door covering half of the side panels; and non overlay model suitable for the cabinet door not covering the side panels.

Overview

  • Brand: SEIWEI
  • Unit Count: 2 Count
  • Manufacturer: SEIWEI
